My PhD dissertation (“candidate”) was devoted
mostly to the prediction of thermal stability of some liquid crystals (nematic
Schiff bases), or, more precisely, the temperature of mesophase destruction
(the temperature at which a liquid crystal becomes a regular liquid). The
results were published in [1-5]. Several other tasks appeared within this work.

Approximately 50 compounds (Schiff bases) were

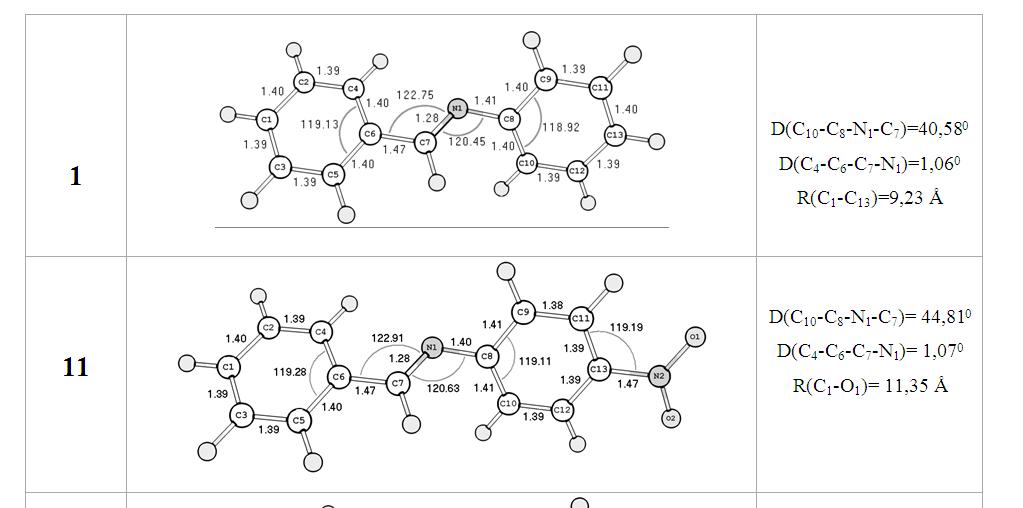

investigated, e.g., those shown below:

First, we computed NMR spectra of some of
these molecules, and built a correlation between these computed NMR chemical
shifts and experiment:

The computations were performed using the GIAO
B3LYP/6-311G(D,P) method. B3LYP/6-311++G(2DF,PD) yielded somewhat better
agreement with experiment but this level of theory was too expensive for us.
The GIAO and CSGT algorithms yielded almost identical results (the difference
was much smaller than other sources of error).

For molecule 1 (see above) the
crystallography data is available. We did the following: the NMR chemical
shifts for this molecule were computed not only with the optimized structure,
but also with the structure taken from the crystallographic data (the bond
lengths C..H were taken from the computation, since the crystallography does
not provide the coordinates of H atoms in molecule). The agreement
(correlation) between the computed and experimental chemical shifts appears to
be much better in the first case; it means that the optimized structure (which
corresponds to the gas phase) is closer to the real structure in liquid state
than the crystal structure (in other words, the computational error is much smaller
than the impact of the packing forces in crystal).

We found that the NMR spectra can be used for
getting some information about the structure of the investigated molecules. At
the same time, we found that the structural parameters of these molecules are
much less important for our tasks than anticipated by previous researchers.

The molecular polarizability of a number of Schiff
bases was computed. For some of these molecules the experimental polarizability
data is available, and we found a good correlation between the computed and
experimental components of the polarizability tenzor:

We also found a relatively high correlation
between the computed polarizability anisotropy of the molecules and
experimental polarizability anisotropy of substituent for homologues:

Then we plotted a correlation between the
anisotropy of molecular polarizability of our Schiff bases (computed with DFT)
and the experimental temperature of liquid crystal phase destruction
(nematic-isotropic phase transition):

This “correlation” is quite low. Anyway, it
can be stated that the anisotropy of molecular polarizability of nematic liquid
crystals can be used for predicting their thermal stability. It seems evident
that the low degree of correlation is not caused by the computational error
(the picture above proves that this error is much smaller).

References:

1. G. A. Zhurko, V. V. Aleksandriiskii,
V. A. Burmistrov. Conformational state of benzilidene aniline derivatives from
ab initio calculation and NMR spectroscopy data// Journal of Structural
Chemistry (J STRUCT CHEM+) 47(4):622-628 · July 2006 with 16 Reads DOI:
10.1007/s10947-006-0348-y

2. G. A. Zhurko, V. V. Aleksandriiskii,
M. K. Islyaikin, V. A. Burmistrov. Structure and molecular polarizability of
mesogenic Shiff bases from quantum chemical calculation data// Journal of Structural Chemistry (J STRUCT
CHEM+) 48(3):440-446 · May 2007 with 19 Reads DOI: 10.1007/s10947-007-0066-0

3. Zhurko
G.A., Alexandriyskiy V.V., Burmistrov V.A. Conformational state of benzilidene
derivatives by NMR 13C
data and quantum chemistry computations//IV Russian conference “New
achievements of NMR in structural investigations.” Kazan, 4-4 April 2005, p.64.

4.
Structure and stability of liquid crystals – proton donor H-complexes in
solutions by 13C
NMR spectroscopy and semi-empirical AM1 method data // Alexandriiskii V. V.,
Burmistrov V. A., Isliyakin M. K., Zhurko G. A. // Intern. Symp. and Summer
School “Nuclear Magnetic Resonance in Condensed Matter”, 3rd Meeting “NMR in
Heterogeneous System”. Saint Petersburg, Petrodvorets, Russia, 9-13 July 2006, p.50.

5.. In Russian: Zhurko G. A. Ispolzovanie
kvantovokhimicheskih raschetov dlya izucheniya molecularnoy structuri nekotorikh
nematicheskih osnovaniy Shiffa // Zhurko G.A., Alexandriyskiy V. V., Burmistrov
V. A. // Zhidkie kristally i ih prakticheskoe ispolzovanie. 2005. N1. c 13-22

English:
Zhurko G. A. The use of quantum chemistry computations for investigation of the
molecular structure of some nematic Schiff bases // Zhurko G.A., Alexandriyskiy
V. V., Burmistrov V. A. // Liquid crystals and their practical use. 2005, N1,
p.13-22.

Currently, the coupled cluster-based techniques (CC) are very powerful ab initio methods for describing the electron correlation effects (for inorganic molecules). The hierarchy of these methods includes CCSD (with singles and doubles excitations), CCSDT (also triple excitations), CCSDTQ, etc. Within this series, the energy quickly converges to a hypothetical point of “full correlation” (for a specified basis set). The advantage of the coupled cluster theory, compared to the configuration interaction (CI) technique, is that with CC the energy converges more quickly upon increasing the excitation rank than with CI.

CCSD(T) is called the “golden standard” of quantum chemistry. Unlike the CCSDT method, in CCSD(T) the triples (triple excitations) are treated non-iteratively, in a perturbative fashion, which reduces computation cost quite significantly. CCSD does not give such good describing of electronic correlation, CCSDT is quite costly, while the CCSD(T) method is a good compromise; in addition, the success of the CCSD(T) approach stems from fortuitous error cancellation (however at Ref. [14] it is stated that CCSD(T) is worse than CCSDT for open shell systems, in contrast to closed shell systems).

Note that for all post-HF methods, upon increasing the basis set size the total energy converges relatively slowly; that’s why, it is a kind of naïve to expect “golden quality” results from the CCSD(T) method with the basis sets as small as DZ or even TZ (the DZ and TZ abbreviations stand for double-zeta and triple-zeta quality basis sets, respectively).

As we have written before, the so-called complete basis set (CBS) limit means that you first compute with cc-pVDZ, then cc-pVTZ, then cc-pVQZ, then cc-pV5Z, etc., and the energy should converge to a hypothetical “complete” basis set limit. At the same time, there are more than 10 extrapolation schemes which give nearly the same result after performing only 2-3 computations (however, these extrapolation schemes are empirical to some extent).

In the work of a quantum chemistry guru Kirk Peterson [1] the following is stated: “

Previous composite methods like G1, G2, etc., or W1, W2 comprise computing chemical properties with molecular geometries obtained at HF/6-31G* or MP2/6-31G* level, and are much less reliable than fully ab-initio Feller–Peterson–Dixon method (see below) (unlike the FPD approach, these methods are a “black box”).

For very small molecules, the HEAT model (high-accuracy extrapolated ab initio thermochemistry) can be used; it produced a MAD of 0.09 kcal/mol relative to well-established experimental DHf(0 K) values (for a test set of 26 small molecules involving 5 atoms (H, C, N, O and F)) [5]. The maximum observed error was 0.33 kcal/mol (C2H2). The HEAT approach implies optimizing geometries at CCSD(T)(CV)//cc-pVQZ, then estimating the basis set limit by a 1/lmax 3 extrapolation [4] of aug-cc-pCVQZ and aug-cc-pCV5Z energies.

In the Feller–Peterson–Dixon (FPD) approach, the total energy of atomization of the molecule is usually computed as the sum of the following terms:

1) Estimated complete basis set (CBS) limit of the CCSD(T) energy;

2) Energy of correlation of outer-core electrons with themselves and with the valence electrons (core-valence (CV) term). This term is estimated at CBS limit too, if possible;

3) Scalar relativistic effects term (or, when these effects are already accounted for in the first two stages, the elimination of errors due to using the pseudopotential approximation);

Sometimes it is advised to use all-electron DK-contracted basis sets already for the first two stages if available relativistic sets are of the same size as non-relativistic ones.

4) Spin-orbit (SO) interaction term. This is a relativistic term too; more specifically, there are two levels of spin-orbit effects, the effects of second order are not always necessary to include. For closed shell species, only first order effects should be taken into account;

5) Corrections to the total atomization energy beyond the CCSD(T) level;

6) Zero-point energy (the energy of the first vibrational state). Usually this correction is computed in the harmonic approximation. For polyatomic molecules, this term may be reliably obtained from harmonic frequencies computed at lower levels of theory (DFT, MP2).

The approach provides flexibility in terms of the use of a particular level of theory for computing individual contributions. In some cases, a few of these components may be excluded without severe loss of accuracy. Below we present two sample formulas of computing the total energy in FPD approach, appropriate for a molecule comprising 2-5 atoms (the first formula demands lower hardware level than the latter):

Particularly, for the Q5 extrapolation algorithm:

N=4 for QZ, 5 for 5Z; here we have got 2 equations with two variables (Ecbs and A).

∆ESO includes atomic corrections taken from experimental data (NIST) and computed corrections for molecules.

The explanation of this formula is presented in Ref. [6]. We know that the ∆ESO can be computed using the Molpro program (via the state-interacting approach within the first-order perturbation theory) or the Dirac program (spin-orbit coupling is already included at the HF level of theory).

In the FPD approach, when high accuracy is necessary, the molecular geometry is usually optimized using CCSD(T) method with a sequence of the correlation-consistent basis sets in an effort to evaluate energy differences at or near the CBS limit geometries. Besides that, reasonable results can be usually obtained with lower level geometries (e.g. computed at DFT level).

The FPD approach currently seems to be the best solution for computing high-accuracy energies and other properties of relatively small molecules (usually inorganic). As an indication of the performance of the FPD procedure for atomization energies, a mean signed deviation of -0.04 kcal/mol, RMS = 0.28 kcal/mol and MAD = 0.17 kcal/mol is found when comparing against 121 molecules (small organic or inorganic molecules containing s and p elements, like CH4, C2N2, C2H2O, C4H6, SO3, HBr, H2SiO, I2, etc) whose experimental uncertainties are ±1 kcal/mol or less [7].

Now we should make an important statement. There is a persuasive hypothesis that the FPD approach never produces wrong results, if one reaches convergence in each of the computed contributions to the energy. And when the computation is performed by an experienced quantum chemist, he can always tell whether the convergence is reached in a particular component. For reliability of the FPD method it is required that the additivity approach works, and an experienced quantum chemist can test this approach too.

The term “wrong result” needs to be interpreted in more details. Any computation can be characterized by a specific accuracy. In chemistry, the concepts of “spectroscopic accuracy” and “chemical accuracy” are used. The spectroscopic accuracy (1 cm-1) is needed for the spectroscopy, the chemical accuracy (1 kcal/mole) is needed for thermochemistry, and for the majority of tasks probably even smaller accuracy is required. Using the FPD method on personal computers, one can reach chemical accuracy for the overwhelming majority of small stable inorganic molecules (diatomic and symmetrical polyatomic), or for small- to medium-sized organic molecules. It should be noted that for first and second row compounds the said accuracy can be achieved, using only the first and second step of the FPD procedure (elimination of basis set incompleteness and taking into account the core-valence correlation).

It has been shown [12], that for molecules containing d and f elements the experimental error exceeds 1 kcal/mol, and because of that, for these compounds it was proposed [13] to consider the chemical accuracy being 3 kcal/mol for d elements and 5 kcal/mol for f elements.

The most important point here is as follows: an experienced quantum chemist, if he can’t reach the required accuracy in the computation, is usually aware of that, because the convergence of any FPD component (contribution to the energy) can be estimated via its computation on a higher level of theory. The necessity to analyze individual components is both the disadvantage of the FPD approach (because it makes this method relatively laborious, demanding a high qualification of the chemist and the use of appropriate software), and its advantage (because the quantum chemist can decide which contributions should be calculated at a high level of theory, and which of them may be neglected). Because of that, the FPD method is definitely not a “black box”. And besides that, the error of the computation can be often estimated by comparing the results of the computations for similar molecules with the experimental data (mainly high-accuracy, particularly spectroscopic). For example, to estimate the computational errors for the NdI3 molecule, one can calculate the Nd3+ ion and compare the relative energies of its electronic states with the experiment.

At the moment, only a few groups are performing the FPD computations: groups of Peterson K.A., DeYonker N., Hill J. G., Solomonik V.G.

It should be mentioned that the abbreviation "FPD" should not be considered as some prescribed procedure; this term does not imply using any particular approaches when any energy contribution is computed. A researcher who applies this method must decide himself, what level of theory should be used in the computation of a particular energy contribution (depending on the task level and available hardware and software). So, a significant advantage of the FPD method is that it can immediately benefit from any newest developments of methods, basis sets, and hardware.

While modeling spectra, it is desirable to ensure that the Born-Oppenheimer approach is suitable for the molecule studied. By the term “an approach is non-suitable” we mean that the accuracy of the computation within this approach is worse than required. The Born-Oppenheimer approach can yield large errors, if there are low-lying electronic states in the system: in this case, the reciprocal influence of the PESs of different electronic states will be observed, and this will lead to significant discrepancies between the computed and experimental spectra. When the Born-Oppenheimer approach fails, the electronic and vibrational states interact, and the electronic and vibrational (nuclear) solutions cannot be separated [8]. Ab initio methods, in fact, allow one to deal with the electronic part, while the Born-Oppenheimer approach is related to the nuclear one.

For very heavy elements, other relativistic elements can play a role, in particular the effects of quantum electrodynamics (first of all, the Lamb shift). Kirk Peterson writes:

The FPD method is usually applied for inorganic molecules. It should be mentioned, that for molecules with complicated electronic structure, even small, the convergence of all contributions for achieving the chemical accuracy still can’t be reached.

Nevertheless, at the moment the properties of the majority of molecules with up to 4 atoms can be computed by the FPD method with accuracy, in practice not worse than the experimental one.

The FPD method is based on the assumption of the additivity of the contributions, which are enlisted above. In some cases, when the researcher needs a very high (spectroscopic) accuracy, the standard approach implying separate accounting for various contributions may fail to yield such accuracy. This can occur when individual contributions (for example, spin-orbit) are relatively high. In such situations several contributions should be taken into account simultaneously.

For molecules, which are to big to be computed via the “traditional” FPD, the following approach becomes righteous: the geometry is optimized at DFT level with triple-zeta basis set, and then a single point FPD computation is performed (for example, in the Peterson’s work [9]).

It should be noted that for the majority of small first and second row compounds, as it can be seen, the chemical accuracy can be reached at the DFT level (not systematically however). In Ref. [10] the computations of 211 molecules were performed using the PBE and PBE0 functionals and quintuple zeta-quality basis sets (aug-cc-pV5Z), and the authors obtained MAEs of lower than 1 kcal/mol and MaxAEs of 2-5 kcal/mol. See this blog [11] for more information.

Refs:

[1] Theor Chem Acc (2012) 131:1079

[2] Methods in Computational Chemistry; Wilson , S., Ed.Vol. 2; Plenum Press: New York, 1988.

[3] Hess, B. A.; Dolg, M. Relativistic Quantum Chemistry with Pseudopotentials and transformed Hamiltonians. Wiley Series in Theoretical Chemistry; John Wiley & Sons: Chichester , 2002; Vol. 57.

[4] Helgaker T, Klopper W, Koch H, Noga J (1997) J Chem Phys. 106:9639

[5] Chemical accuracy in ab initio thermochemistry and spectroscopy: current strategies and future challenges. Kirk A. Peterson • David Feller • David A. Dixon. Theor Chem Acc (2012) 131:1079 DOI 10.1007/s00214-011-1079-5

[6] David A. Dixon, David Feller, Kirk A. Peterson. Annual Reports in Computational Chemistry. Volume 8, 2012, Pages 1–28

[7] D. Feller, K.A. Peterson, and D.A. Dixon, "A survey of factors contributing to accurate theoretical predictions of atomization energies and molecular structures", J. Chem. Phys. 129, 204105 (2008).

[8] https://en.wikipedia.org/wiki/Born–Oppenheimer_approximation

[9] R. Craciun, D. Picone, R.T. Long, S. Li, D.A. Dixon, K.A. Peterson, and K.O. Christe, “Third row transition metal hexafluorides, extraordinary oxidizers and Lewis acids: Electron affinities, fluoride affinities, and heats of formation of WF6, ReF6, OsF6, IrF6, PtF6, and AuF6”, Inorg. Chem. 49, 1056 (2010).

[10] Jensen, Stig Rune; Saha, Santanu; Flores-Livas, José Abdenago; Huhn, William; Blum, Volker; Goedecker, Stefan; Frediani, Luca, 2017, "GGA-PBE and hybrid-PBE0 energies and dipole moments with MRChem, FHI-aims, NWChem and ELK", doi:10.18710/0EM0EL, UiT Open Research Data Dataverse, V3

[11] http://www.compchemhighlights.org/2017/03/the-elephant-in-room-of-density.html

[12] DeYonker et al. J. Phys. Chem. A, Vol. 111, No. 44, 2007

[13] Stephanie Grimmel, George Schoendorff, and Angela K Wilson. J. Chem. Theory Comput., 05 Feb 2016, DOI: 10.1021/acs.jctc.5b01193.

[14] http://www.compchemhighlights.org/2016/01/assessment-of-accuracy-of-coupled.html

Sometimes users ask us to implement a feature
like plotting multiple spectra (from different files) in a single graph. We do
not plan to implement such features, because:

1) This
will require a reconstruction of the user interface, and old users will have to
learn how to use Chemcraft again;

2) For building graphs of any type, powerful
software packages already exist – Excel, Origin, etc. We do not want to compete
with them. But Chemcraft allows one to export any graph, spectrum, diagram in
text format, copying its data to Excel via Clipboard. So, multiple spectra in
one picture can be easily obtained as follows: you should open several output
files in a row, copy the data with spectra to Excel and then combine these
spectra in Excel. Note that the broadened spectrum (Doppler, Lorentzian
broadening of bands) can be exported too.

See, for example, this graph built in
Chemcraft:

This is a Gaussian09 Born-Oppenheimer
Molecular Dynamics (BOMD) computation, and the graph shows the distance between
atoms C1 and H1 versus time in femtoseconds. There seems to be a problem, or a bug,
with visualization of such files – Chemcraft reads the first 3 points with zero
time. We found the format of the output file quite difficult. Maybe this
problem will be fixed in future, but we are not even sure that this is
necessary: if you need to plot a good graph “Distance vs Time”, click on the
“Copy” button, insert the data into Excel and manually delete the invalid
lines. Of course you should check your graph against the output file – if you
work with BOMD computations, you should understand them well enough.

We always give our users the possibility to
verify the data visualization in Chemcraft – for example, when you visualize
the molecular orbitals, you can click the “Check orbitals” button to check
whether Chemcraft extracted all orbitals correctly. When we implement
visualization of MOS from output files of new software, it is sometimes
difficult to thoroughly verify whether the MOS are visualized correctly
(probably free software is characterized with such problems to a greater
extent). And don’t forget to check the data shown by Chemcraft using the Source
mode.

We have
gathered some information from computational chemistry forums, which can be
helpful for you. It should be noted that the following text cannot be
considered as a professional guide; such guides will possibly appear in the
future.

First of
all, you should read this manual:

One of the thesises in this book is that the GGA functionals are ususally more universal (let’s say, closer to
“Ab initio”) than the hybrid functionals (this statement, however, has some weak points). This also means that the errors with
these functionals are more systematic: for example, the PBE functional usually
overestimates the bond lengths and underestimates the vibrational frequencies.
In our opinion, if you choose between, e.g., the PBE and B3LYP functionals, you
should note that the latter should be more accurate for most organic molecules,
but it should be less accurate in some problematic cases; so, the PBE
functional is more reliable. Because of that, at one forum we found the
following advice (written in 2010): always use the PBE functional and don’t
worry. It is CGA, so it must be more universal than, e.g., the B3LYP functional.

It is written in this manual that the B3LYP
functional has shown good results for organic molecules, but it is worse for
transition metal compounds and for large molecules. TPSSh probably is a good functional for transition metal compounds (according to this manual).

The B3LYP functional is commonly used in chemistry, while the PBE, PBE0 functionals are commonly used in applications to extended systems (materials) [13].

We highly
recommend you to read this paper:

Markus
Bursch, Jan-Michael Mewes, Andreas Hansen, Stefan Grimme. Best Practice DFT
Protocols for Basic Molecular Computational Chemistry.

D O I:
10.26434/chemrxiv-2022-n304h

Here is another compilation on the subject:

Here is a
screenshot from this paper:

It is not
clear from this list, whether the dispersion correction should be always used.
However, at other forums we found the advices to use the dispersion correction
always if possible. In Ref. [1] you can see that the ωB97X-D is the best single-component
functional, while PBE0-D3 perform almost as well. Besides that, on the CCL list one can read that B3LYP-D3 is usually better than B3LYP.

Dispersion
correction is the interaction of induced dipoles. This correction becomes
important if two parallel benzene rings interact (stacking). So, the dispersion
correction is important for computing such molecules as tetraphenylporphyrin, bilirubin,
etc.

Here is a
list of favorable and non-favorable DFT functionals from the DFT 2015 poll for
computing particular properties:

With all due respect to the creators of the
above list (computational chemistry community), we must mention that we tried to compute the properties of
bilirubin molecule (having intermolecular H-bonds) using the PBE, B3LYP and wB97XD
functionals, and we found that the PBE functional is the worst at describing intermolecular
H bonds (the PMR spectra computed using the PBE/6-311G(D,P) method are in
poorer agreement with the experimental ones than the PMR spectra computed using
the B3LYP/6-311G(D,P) or wB97XD/6-311G(D,P) methods). So, we found that the PBE
functional is not good at describing H-bonds, in contrast to the conclusions
drawn above. So, we think that you should not fully trust these tables.

Another
post from CCL states the following:

- Recommended GGA methods: revPBE-D3, B97-D3

- Recommended meta-GGA methods: oTPSS-D3,
TPSS-D3

- Hybrid functionals: PW6B95-D3, M062X-D3

- Double-hybrids are the most accurate DFT
methods on the market: DSD-BLYP-D3, DSD-PBEP86-D3, PWPB95-D3

In Ref. [2], a thorough energy benchmark
study of various density functionals (DFs) was carried out. The authors write:

“In
summary, we recommend on the GGA level the B97-D3 and revPBE-D3 functionals.
The best meta-GGA is oTPSS-D3 although meta-GGAs represent in general no clear
improvement compared to numerically simpler GGAs. Notably, the widely used
B3LYP functional performs worse than the average of all tested hybrids and is
also very sensitive to the application of dispersion corrections.”

“The
ωB97X-D functional seems to be a promising method. The most robust hybrid is
Zhao and Truhlar's PW6B95 functional in combination with DFT-D3”.

“If higher
accuracy is required, double-hybrids should be applied. The corresponding
DSD-BLYP-D3 and PWPB95-D3 variants are the most accurate and robust functionals
of the entire study.”

The tests
in this paper were performed on GMTKN30 set – this set covers mainly molecules
containing main group elements, mostly organic (link).

So, the double-hybrids seem to be the best
DFT methods at the moment. This is illustrated by the following chart from the
aforementioned paper:

Another
advantage of PBE is that this functional is “cheap”.

Note that
the PBE and PBE0 methods are quite different: PBE is a CGA, while PBE0 is a hybrid method. However, if one compares e.g. BP86, BLYP, BPW91 functionals (GGA) with PBE0, he finds that PBE0 is "less semi-empirical".

Here is
another comparison of DFT functionals. In Ref. [3], a few DFT functionals were benchmarked
for 14 compounds (calculation of vertical excitation energies by TDDFT and their
comparison to experiment). Here are two pictures from this
paper:

Ref. [4]
reports that the CAM-B3LYP and BHandH functionals yield the best agreement
between computed and experimental vertical absorption energies for a set of
some simple organic molecules (involving first and second row atoms).

We have
performed some benchmark NMR computations with different functionals. The 1H
NMR spectra of 26 simple organic molecules (not containing internal hydrogen
bonds) were computed at PCM wB97XD/6-31G(D,P), PCM B3LYP/6-31G(D,P), PCM B3LYP-D3/6-31G(D,P), PCM
B3LYP-D3/aug-cc-pVTZ and some other levels, and the following conclusions were
made:

1) The
methods PCM wB97XD/6-31G(D,P) and PCM B3LYP-D3/6-31G(D,P) yield very similar standard
deviations (SD) from the experiment of 0.1411 ppm and 0.13005 ppm, respectively;
note that the signals of the protons not attached to carbons do not fit into
common correlation). This, however, does not mean that these two functionals
produce similar results (correlation of the values computed by them has an SD
of 0.06849 ppm);

2)
Switching from PCM B3LYP-D3/6-31G(D,P) to PCM B3LYP-D3/aug-cc-pVTZ does not
improve the agreement with the experimental data: the SD is 0.13005 for the
former and 0.13539 ppm for the latter. This is even rather strange for us, why
the enlargement of the basis set does not lead to the improvement of the
agreement with experiment; maybe, the main source of disagreement is the
experimental error or some fundamental problems of NMR computation algorithms.

Note that
we have performed some benchmark IR spectra computations (mentioned in a
previous post in this blog), and we found that switching from wB97XD/6-31G(D,P)
to wB97XD/aug-cc-pVTZ method improves the agreement with the experiment
approximately by a factor of 1.2;

3) It is of
no real importance, whether to perform a full geometry optimization at PCM
B3LYP-D3/aug-cc-pVTZ level of theory, or just perform the geometry optimization
at PCM B3LYP-D3/6-31G(D,P) level and then do a single point with aug-cc-pVTZ
basis set. The NMR shift values obtained by these two approaches correlate with
SD=0.01442 ppm;

4) Taking
into account the solvation effects with PCM model improves the agreement with
the experiment with an almost negligible increase in computational costs;

5) Switching
from PCM B3LYP/6-31G(D,P) to PCM B3LYP-D3/6-31G(D,P) improves the agreement
with the experiment by 0.4% only (SD changes from 0,13056 to 0,13005). This is
because only such molecules as phenol, biphenyl, anthracene, hexane, etc. were
computed. If we had computed such molecule as benzene dimer, the dispersion
correction would become important. Besides that, for our molecules the energies differ rather significantly with the B3LYP and B3LYP-D3 methods.

6) Two NMR
computation schemes – GIAO and CSGT – produce almost identical results (SD
between them is 0.016 ppm).

The
combination of these advices can confuse an inexperienced user. As for us, we
decided that we should use PBE-D3 for inorganic molecules and ωB97X-D or
B3LYP-D3 for organic ones, since we deal with the Gaussian09A package. Such an
advice should be useful only for “amateurs” who are unable to gather more
information.

Anyway, it is better to use several
functionals to ensure that they produce similar results. MP2 should
not also be forgotten (SCS-MP2 seems to be better than conventional MP2, as written in the paper
above; as far as we know, SOS-MP2 is better too).

Recently, the B3LYP/6-31G(D,P) method has
been quite popular. We think that using this method for computing organic
molecules (not containing d and f elements) is still rather adequate, but the
snobs can interpret the use of this method as the sign of amateurishness (at
least, if you don’t employ different functionals and/or basis sets in the same
study). See, for example, this and this posts on the CCL list.

The flaws of this famous B3LYP/6-31G* model
chemistry are discussed in Ref. [5]:

The authors write that the relatively good
performance of B3LYP/6-31G*, which made it so popular, is caused by a hidden
error cancellation. The B3LYP-gCP-D3/6-31G* method, according to the authors, is
much better (it removes the two major deficiencies: missing London dispersion effects and basis set
superposition error). The B3LYP-D3/6-31G* method is slightly worse as it does
not provide a BSSE elimination. This picture illustrates the aforesaid:

As far as
we know, the density fitting / RI (Resolution of the Identity) approximation is usually a good thing,
as it speeds up your calculations without significant loss of accuracy (it least, this is written in Orca manual). However, in
some cases it can lead to bad SCF convergence or give the error of 1-2 kcal/mol
in energies.

Here is a picture from Ref. [13] illustrating the availability of DFT functionals:

As far as we know, at the moment the optimal basis sets for high-accuracy computations are Dunning family sets: cc-pVnZ, aug-cc-pVnZ, cc-pCVnZ, cc-pwCVnZ (n=2,3.4,5,
etc). These basis sets are correlation consistent; this means, that they were
optimized using correlated methods, unlike the 6-31G** basis sets. In Ref. [6] the following is stated:

"One of the primary reasons for the cc basis set family’s lasting

popularity is due to a series of empirical observations that as

the cardinal number (n in cc-pVnZ) of the basis set is increased,

energies and various properties converge smoothly toward the

complete basis set (CBS) limit."

"One of the primary reasons for the cc basis set family’s lasting

popularity is due to a series of empirical observations that as

the cardinal number (n in cc-pVnZ) of the basis set is increased,

energies and various properties converge smoothly toward the

complete basis set (CBS) limit."

The so-called complete basis set (CBS) limit means that you first compute with cc-pVDZ, then cc-pVTZ,
then cc-pVQZ, then cc-pV5Z, etc., and the energy should converge to a
hypothetical “complete” basis set limit. At the same time, there are more than 10 extrapolation schemes which give nearly the same result after performing only 2-3 computations (however, these extrapolation schemes are empirical to some extent).

For heavy elements (Z>29), relativistic effects are
strong and must be taken into account either using the methods like ZORA, DKH, or
using effective core potentials (ECPs, PPs). The main relativistic effects include relativistic contraction and spin-orbit interaction. For many tasks, even such elements as Fe, Co, Ni do not require including relativistic effects in the computation (you will have a lot of problems besides relativism with these atoms).

The Ref. [6] provides an overview of the
development of Gaussian basis sets for molecular calculations, with a focus on
four popular families of modern bases ("Gaussian basis set" means any basis set with Gaussian (not Slater) functions, not a specific set for the GAUSSIAN program). The authors write about the cases when
using ECPs is not advisable (in particular, electron paramagnetic resonance),
and it is written that using the DFT-based ZORA or DKH models with segmented
all-electron relativistic contracted (SARC) basis sets produce good agreement
with experiment and higher level ab initio computations.

One interesting point is mentioned in Ref.
[7]: the authors report that the computations with 6-311++G** basis set gave
better molecular geometries than the more costly aug-cc-pVDZ (the methods used
were MP2 and CCSD). In addition, the smaller 6-311++G** invariably leads to
lower calculated total energies than aug-cc-pVDZ. So, it seems that the aug-cc-pVDZ
can be worse than the 6-311++G** set (nevertheless, we suppose that if you need an
expensive basis set or CBS (complete basis set) extrapolation, you should use cc-pVTZ,
cc-pVQZ, cc-pV5Z, etc).

Some people
say that it is not actual to use basis sets larger than cc-pVTZ with DFT. However,
in Ref. [14] the authors performed energy computations of 211 small first and
second row compounds (mostly organic), and they concluded that the 5Z basis set
(aug-cc-pV5Z) is required to get the MAE of atomization energies below 1
kcal/mol. See this blog for more information.

The same is
written at this handbook “Practical Advice for Quantum Chemistry Computations”:

For some small organic molecules, we have
found that the basis sets 6-31++G(D,P) and AUG-cc-pVDZ give almost identical results
(protonation energies of 16 amide-containing molecules computed with wB97XD/6-31++G(D,P) and wB97XD/AUG-cc-pVDZ methods correlate with R= 0,99966; this difference
is almost negligible for our applied tasks). In contrast to the results
reported in the aforementioned paper, the total energies computed with wB97XD/AUG-cc-pVDZ
method are 3-30 kJ/mol lower than the energies computed with wB97XD/6-31++G(D,P).

At the same time, with the basis set AUG-
cc-pVDZ the computation time was 3-6 times higher than with the 6-31++G(D,P)
basis set. So, the 6-31++G** basis set should be still considered good enough.

It is usually considered that the computation
of anions or significantly electronegative atoms (which show big negative Mulliken
charge) requires the use of diffuse functions (“++” for 6-31G or “aug” for cc-pVnZ).
However, in the paper [8] this conclusion is criticized to a significant
extent. The authors write:

“We
conclude that the use of diffuse functions for calculating geometrical
parameters for PAH anions in general is unnecessary and does not improve the
calculated results significantly. Energy calculations are affected in much the
same way.”.

As the authors write, the only case when the
diffuse functions are important are the computations of absolute values of
chemical shifts; however, in most cases, when the experimental data are
available, it is no necessary to obtain their absolute values as the
correlations between the computed and experimental values can be built instead.

On the other hand, D. Truhlar who investigated the use of diffuse functions writes here:

"How should one add diffuse functions to the basis set? Diffuse functions are known to be critical in describing the electron distribution of anions (as discussed in my book), but they are also quite important in describing weak interactions, like hydrogen bonds, and can be critical in evaluating activation barriers and other properties."

The Truhlar group recommends using the "jun-" basis sets (see below).

One more source of information is the review "Basis sets in quantum chemistry" by C. David. Sherill. The author writes in this review about the diffuse functions:

Our knowledge of the subject
and our personal experience says that the diffuse functions indeed should be
used when calculating anions. We have computed the energies of deprotonation of
12 carbon acids (with PCM solvation model), both with diffuse functions and
without them (wB97XD/6-31++G(D,P) method and the wB97XD/6-31G(D,P) method), and
the values calculated by the first method correlate much better with
experimental PKa values than the values computed without diffuse function (the
correlation coefficients R are correspondingly 0,99522 for wB97XD/6-31++G(D,P)
and 0,98884 for wB97XD/6-31G(D,P)).

Some
recommendations concerning the choice of basis sets can be found on Orca input library:.
These recommendations are:

- Rule of thumb: Energies and geometries are
usually fairly converged at the DFT level when using a balanced polarized
triple-zeta basis set (such as def2-TZVP) while MP2 and other post-HF methods
converge slower w.r.t. the basis set. Ab initio methods are much more basis set
sensitive than DFT methods

- Stick with one family of basis sets that is
available for all the elements of your system. Mixing and matching basis sets
from different families can lead to problems.

- Calculations on heavy elements can either be
performed using an all-electron approach or effective core potentials (ECPs).

Here is a picture from the Orca input library:

So, it
seems that diffuse functions are really important for computing electron affinities.

As far as we know, usually it is not needed
to use a larger basis set than cc-pVTZ with DFT: further increasing basis set size
will not improve the accuracy of the computation. In contrast, this is not true for ab initio
computations, which will benefit from using larger basis sets, such as cc-pVQZ,
cc-pV5Z, etc.

Some papers,
in which the results of DFT computations are compared to those of ab initio
methods and to the experimental data, conclude that DFT performs not worse (or even slightly better) [10, 11, 12]. This is caused by employing modest
basis sets (not larger than cc-pVTZ) in these papers.

So, the choice between DFT or ab initio
methods depends on which properties are calculated and what accuracy is
required.

The larger the basis set, the more difficult
the SCF convergence is (especially if diffuse-augmented basis sets are used). We recommend to always specify SCF=XQC in GAUSSIAN input files. With this keyword, the scf is firstly converged using the default DIIS algorithm, and if the convergence is not achieved, Gaussian switches to more reliable and costly quadratically convergent SCF procedure.

Ref. [9] describes the role of diffuse
functions in computations. It is known, that for many tasks using the diffuse
functions will not lead to significant increase of computational accuracy, but
will increase the cost of the calculation; besides that, using the diffuse
functions can lead to SCF convergence problems and can increase the basis set
superposition error (BSSE). The authors write: “We conclude that much current
practice includes more diffuse functions than are needed. Often, better
accuracy could be achieved if the additional cost were invested in higher-ζ
basis set or more polarization functions.”

The popular basis set family cc-pVnZ (of Dunning
and co-workers) comprises the diffuse functions, if “aug-” prefix is used. The authors notice that
chemists usually utilize “fully augmented” basis sets, and this may not be
optimal for large molecules. For example, the cc-pVTZ basis set for methane has
s, p, d, and f functions on C and s, p, and d functions on H; aug-cc-pVTZ
contains diffuse s, p, d, and f functions on C and diffuse s, p, and d functions
on H atoms.

In contrast, the earlier “plus” basis sets
originally systematized by Pople and co-workers contained only diffuse s and p functions
on non-hydrogen atoms and no diffuse functions on hydrogen atoms. In Ref. [9]
this is called “minimal augmentation”. The maug-cc-pVTZ basis set retains the
diffuse s and p functions on carbon with the exponential parameters optimized
for the aug case but deletes all other diffuse functions.

So, the authors (Truhlar et al.) conclude that using the
minimal augmentation is usually more optimal than using the full augmentation (particularly
with DFT). The authors recommend the so-called “calendar” basis sets, in
particular the “jun” level of augmentation – for example, the jun-cc-pVTZ set
is recommended in comparison to aug-cc-pVDZ or cc-pVTZ. When increasing the
zeta number in Dunning basis sets (i.e. switching from cc-pVDZ to cc-pVTZ, then to cc-pVQZ, etc), augmentation becomes less important, and using the “calendar”
basis sets provides a more efficient sequence of basis sets (than unaugmented, minimally
augmented, or fully augmented sets) for basis set extrapolation to the complete
basis set limit. We know, however, that many researchers have criticized the approach proposed by the authors.

Anyway,
density functional theory is a “black box”. Look at this picture from Ref. [13]:

Our comment
on this picture:

First and
second points: In contrast to ab initio methods, DFT is not hierarchical. Ab initio
(non-empirical) methods are hierarchical: this means that if we increase basis
set size, level of taking into account the electronic correlation (excitation
rank), and possibly the level of taking into account the relativistic effects
(for heavy elements), we approach the exact solution (within the Born–Oppenheimer
approximation). More specifically, if we go, e.g., through CCSD/cc-pVDZ -> CCSDT/cc-pVDZ -> CCSDTQ/cc-pVDZ -> CCSDTQ5/cc-pVDZ, etc., the
results of the computation systematically approach some limit; if
we go through CCSD/cc-pVDZ ->
CCSD/cc-pVTZ -> CCSD/cc-pVQZ -> CCSD/cc-pV5Z -> CCSD/cc-pV6Z,
etc., the results systematically approach the complete basis set (CBS) limit. For the first row, the improvement can be non-monotonic,
while for the second case the improvement seems to be always monotonic.

So, we can verify the accuracy of an ab initio method by comparing its results with the results of a higher level computation. For DFT, this possibility is much less available.

So, we can verify the accuracy of an ab initio method by comparing its results with the results of a higher level computation. For DFT, this possibility is much less available.

The points
mentioned below are mostly our private opinion, maybe not fully right.

As far as
we know, DFT is often used to “confirm” an experiment. This means that if the
experiment and a DFT computation lead to similar conclusions, this increases
the reliability of the investigation. On the contrary, if the experiment and
the DFT calculation give different results, this can be either a discovery or a
failure (inaccuracy of the computation, or maybe the experiment).

Speaking of “confirming” an experiment, it
should be noted that this approach is only good with an independent experiment.
We know some cases when the experiment was “adjusted” for better agreement with
the computation (both at DFT and ab initio levels).

As mentioned above, it is a good practice to
perform the computation with several different DFT functionals, to ensure that
they all give the same results. And as far as we know, some researchers, being
not honest enough, meaningly avoid using more than one functional, because if
different functionals give contradictory results in their work, this makes this
whole work less “publishable”.

Here you can
read an ironical essay “Obituary : Density Functional Theory. 1927-1993”:

The author claims that the density functional
theory in current implementation is not a mathematically correct approach:

“The Hohenberg-Kohn argument is what
mathematicians call an existence proof, as opposed to a constructive proof.
That is, although we now know that, *in
theory*, DFT can extract as much information from r(r) as her brother can
from Y
( r 1, r 2, ... , r n) , no-one knew how to dress her so that
she could achieve this *in practice*.
All quantum mechanical theories are created equal, but some are more equal than
others.”

The hybrid functionals, which appeared in
1993, are even more unreliable and not correct from the theoretical point of
view; in other words, using such functionals may be a kind of “shamanism”, or maybe
even “scientific charlatanism”. The author thinks that the density functional
theory finally died (we should add, it died as a well-grounded scientific
theory) in 1993, after the spreading of hybrid functionals.

On the other hand, in Ref. [13] the author states the following:

"I believe that a fundamental principle underlies the success

of DFT, which is that local approximations are a peculiar type of *semiclassical* approximation to the many-electron problem. For the last 6 years, with both my group and many collaborators, I have been trying to uncover this connection, and make use of it. The underlying math is very challenging, and some must be invented."

The "DFT shamanism" can exist in the following form: if different functionals are applied to the same object, the user may select any results consistent with experimental data (even the latter are invalid or erroneous) and explain them. We suggest calling such practive "DFT quackery".

In Ref. [13] the following is proposed: "Users should stick to the standard functionals (as most do, according to Fig. 1), or explain very carefully why not."

Here is a picture from Ref. [13]:

A fragment of the paper [13]:

"XII. THE FUTURE

So, where does this leave us? It is clearly both the best and worst of times for DFT. More calculations, both good and bad, are being performed than ever. One of the most frequently asked questions of developers of traditional approaches to electronic structure is: “When will DFT go away?.” Judging from Fig. 1, the answer is clearly no time soon. Although based on exact theorems, as shown in Fig. 2, these theorems give no simple prescription for constructing approximations. This leads to the many frustrations of the now manifold users listed in Table I.Without such guidance, the swarm of available approximations of Fig. 3 will continue to evolve and reproduce, perhaps ultimately undermining the entire field. But I expect that some of the many excellent ideas being developed by the DFT community will come to fruition, i.e., produce new and more general standard approximations, well before that happens."

[3]
S.S.Leang, F.Zahariev, M.S.Gordon, J.Chem.Phys., 136, 104101 (2012)

[4]
G.Garcı´a, C.Adamo, I.Ciofini, Phys. Chem. Chem. Phys., 2013, 15, 20210--20219

[8]
Calculations of PAH anions: When are diffuse functions necessary? Noach
Treitel1, Roy Shenhar, Ivan Aprahamian, Tuvia Sheradsky and Mordecai
Rabinovitz. P h y s . C h e m . C h e m . P h y s . , 2 0 0 4 , 6 , 1 1 1 3 – 1
1 2 1

[10] Do Practical Standard Coupled Cluster Calculations

Agree Better than Kohn–Sham Calculations with

Currently Available Functionals When Compared

to the Best Available Experimental Da...

Article in Journal of Chemical Theory and Computation · May 2015

Impact Factor: 5.5 · DOI: 10.1021/acs.jctc.5b00081

[11] On the dissociation energy of Ti(OH,)+.

An MCSCF, CCSD(T), and DFT study

A. Irigoras, J.M. Ugalde, X. Lopez, and C. Sarasola

Can. J. Chem. 74: 1824-1829 (1996). Printed in Canada / Imprimt au Canada

[13] J. Chem. Phys. 136, 150901 (2012). Perspective on density functional theory. Kieron Burke.

[14]

Jensen, Stig Rune; Saha, Santanu; Flores-Livas, José Abdenago; Huhn, William; Blum, Volker; Goedecker, Stefan; Frediani, Luca, 2017, "GGA-PBE and hybrid-PBE0 energies and dipole moments with MRChem, FHI-aims, NWChem and ELK", doi:10.18710/0EM0EL, UiT Open Research Data Dataverse, V3

[14]

Jensen, Stig Rune; Saha, Santanu; Flores-Livas, José Abdenago; Huhn, William; Blum, Volker; Goedecker, Stefan; Frediani, Luca, 2017, "GGA-PBE and hybrid-PBE0 energies and dipole moments with MRChem, FHI-aims, NWChem and ELK", doi:10.18710/0EM0EL, UiT Open Research Data Dataverse, V3

Подписаться на:
Сообщения (Atom)
